DRILL GUIDE FOR RELOCATING CROSS BORE - by Major

In stock
SKU: MAJ-HIT-23
Regular price $59.82
 More payment options

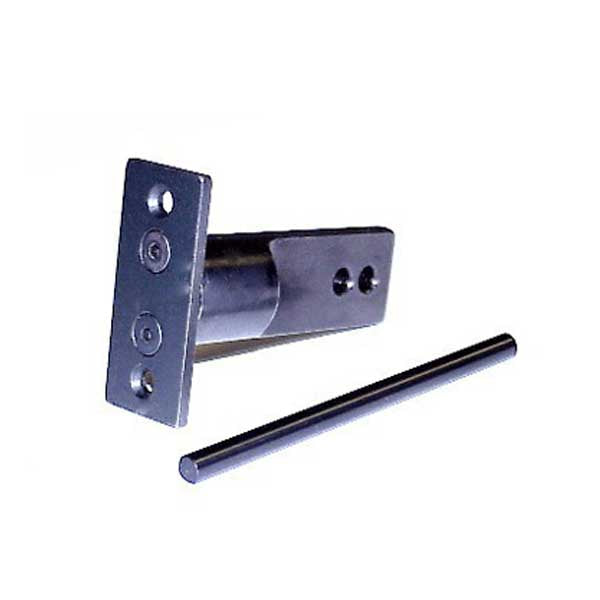

A must-have tool for all locksmiths. Used to "move over" an existing 2-3/8" backset hole to 2-3/4" or 2-3/4" to 2-3/8" or to correct a mis-drilled hole. The HIT-23 attatches by screwing into the existing latch faceplate mortise. A standard hole saw (not supplied) can then be guided to correct the bore. The HIT-23 is supplied with a drill blank to replace the hole saw pilot bit to reduce wear on the guide holes.

Click Here for Installation Directions
