Diameter |
Thickness |
Hole Diameter |
Profile / Angle |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |

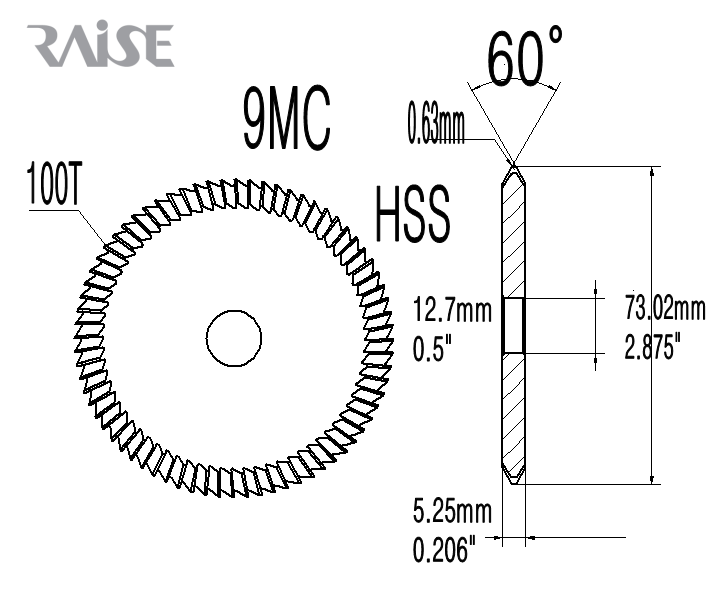

| 9MC | Milling | H.S.S. | 2.875 | 73.02 | .206 | 5.23 | .5 | 12.7 | 30 | 30 | .025R | .635 |
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco 016, 017, 018
